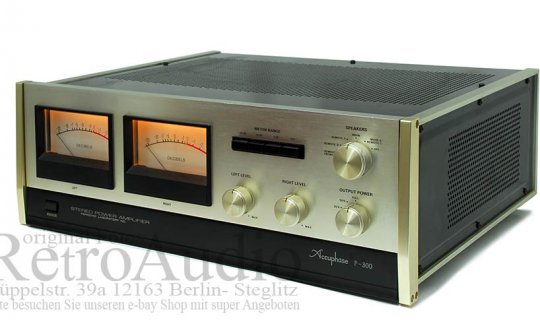

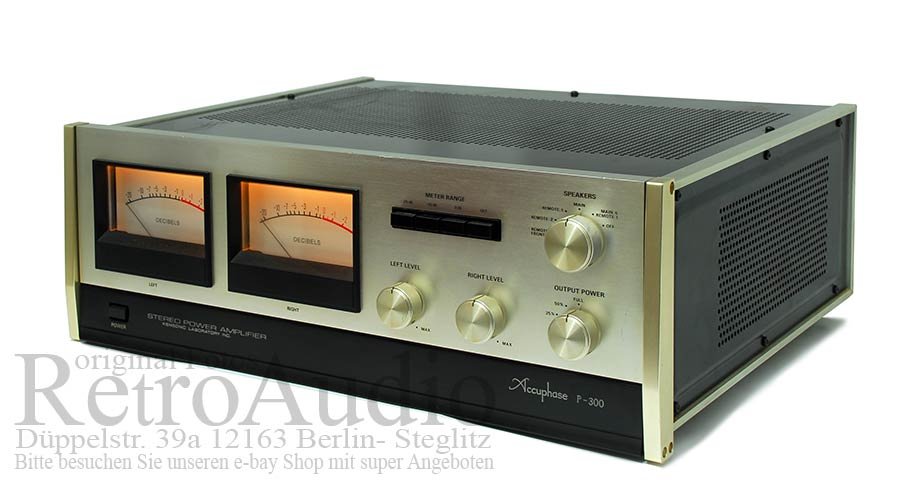

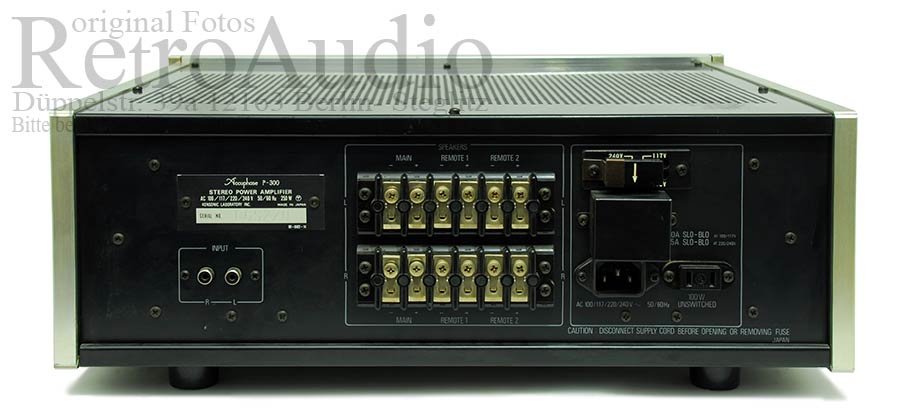

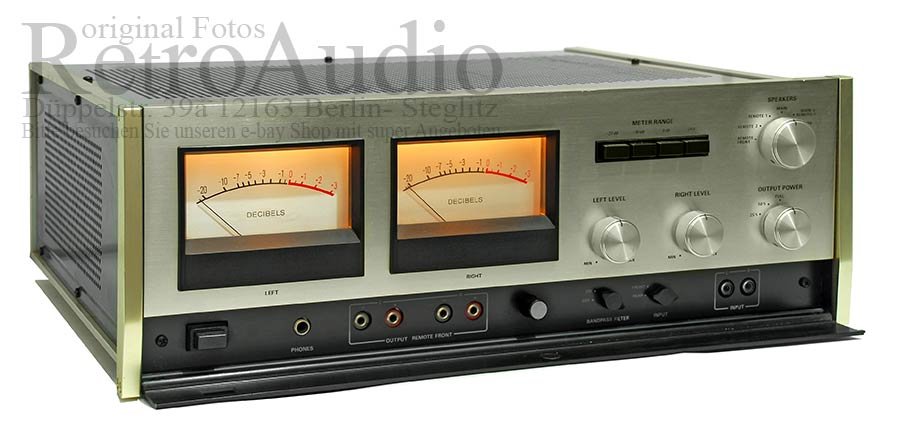

Kensonic Accuphase P 300 Power Amplifier

1973

Form Stereo power amplifier

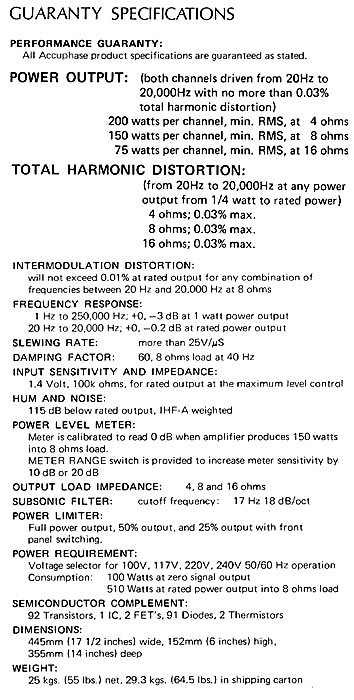

Output power
(Both channel drive, 20Hz - 20kHz, 0.1% of distortion) 4ohm load: 200 W/ch
8ohm load: 150 W/ch
16ohm load: 75 W/ch
THD (20Hz - 20kHz) At the time of an Output power: 0.1% or less
- At the time of a 3dB output : 0.05% or less
At the time of a 50mW output: 0.1% or less
IM distortion 0.1% or less (at the time of an Output power)
Frequency response (8-ohm load) 20Hz-20000Hz+0 -0.2 dB
Dumping factor 20 (for 8-ohm load and 20Hz - 20kHz) or more
A rated input / input impedance 1.0V/100kohm
S/N ratio (at the time of an Output power) 100dB or more
Stereo headphone Low Output-load-impedance type
Audio band pass filter 17Hz or less, 24kHz or more, 18 dB/oct
Power limiter Full power, 1/2, 1/4, a switch change
The semiconductor used Transistor: 73 pieces
Diode: 88 pieces
Thermo sensitive register: Two pieces
IC: One piece
Power source 100, 117, 220, 240V / 50-60Hz
Power consumption At the time of no inputting: 100W
At the time of an 8ohm load Output power: 510W
Dimensions Width 445x height 152x depth of 355mm
Weight 25kg
