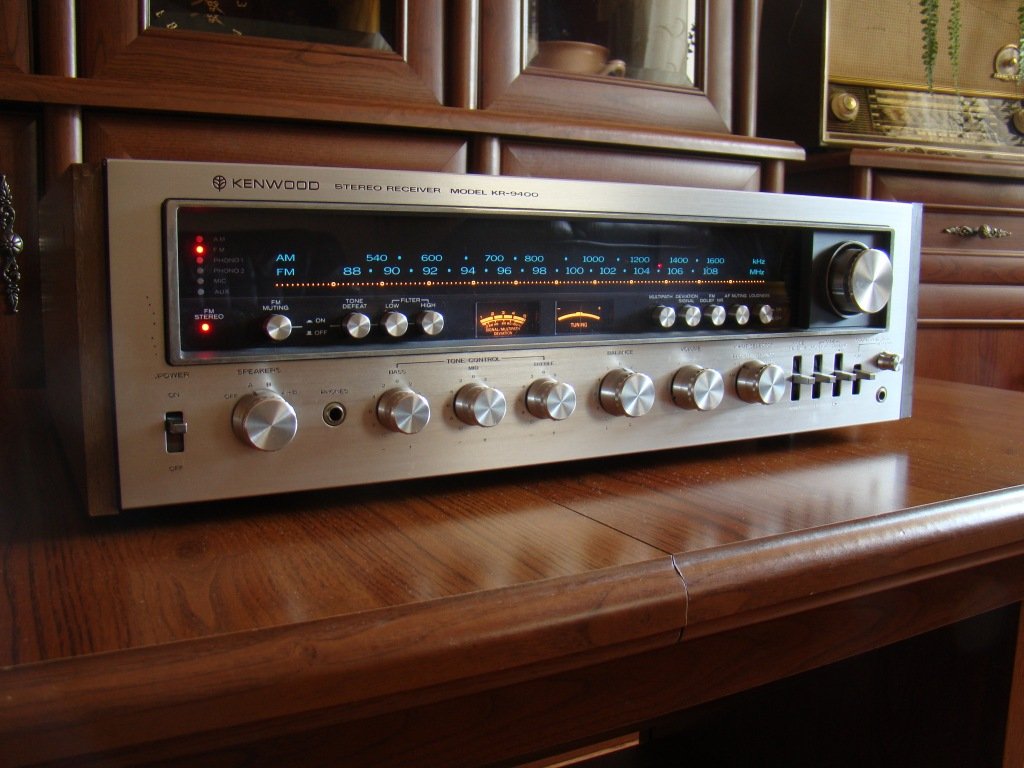

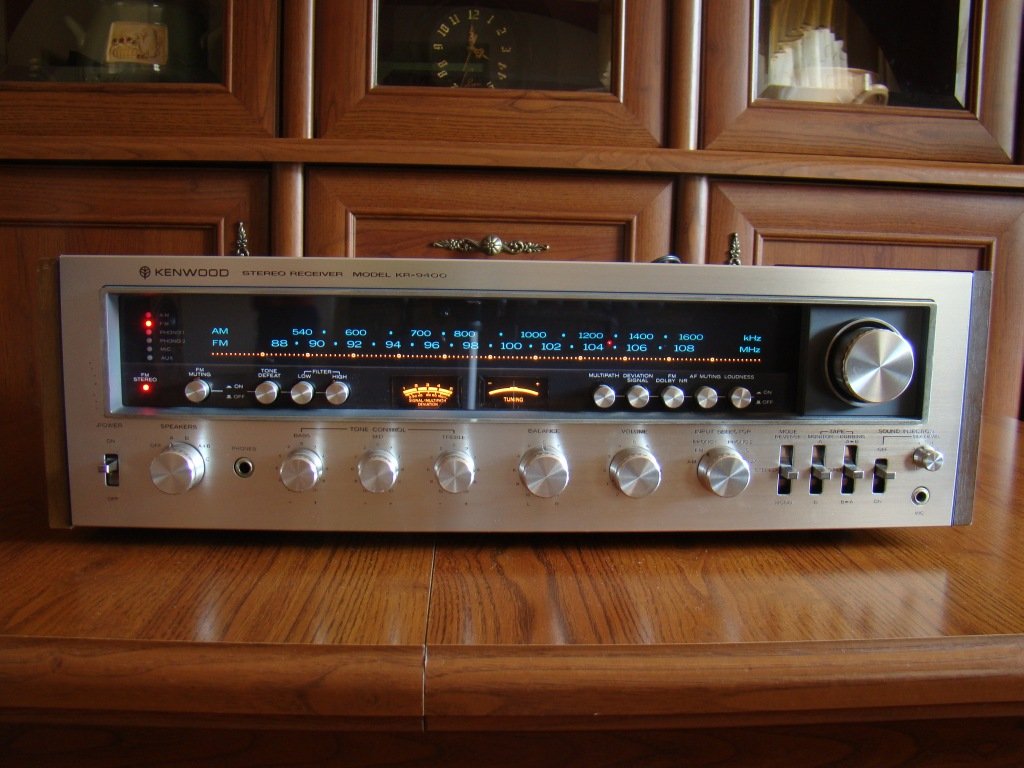

Kenwood KR-9400- Monster Receiver

Published on: 13 October 2012
5.00


Category: Receivers
Manufacturer: Kenwood
Created by: yellow1 PL

COM_DJCATALOG2_FULL_TEXT:

The KR-9400 is the most powerful stereo receiver Kenwood has ever built, delivering a minimum of 120 watts of continuous power per channel into 8 ohm speakers, both channels driven, 20 Hz to 20 kHz, with no more than 0.1% total harmonic distortion.

The precision equalizer phono preamplifier section of the KR-9400 uses low-noise metal encapsulated transistors to deliver an exceptionally high signal to noise ratio and assure utmost circuit reliability.

The KR-9400 provides extremely high FM stereo separation throughout the audio spectrum, thanks to a newly developed phase lock loop IC circuit incorporated in the stereo FM decoder section, achieving more than 45dB separation at 1 kHz; better than 35dB at all frequencies from 30Hz to 10kHz.

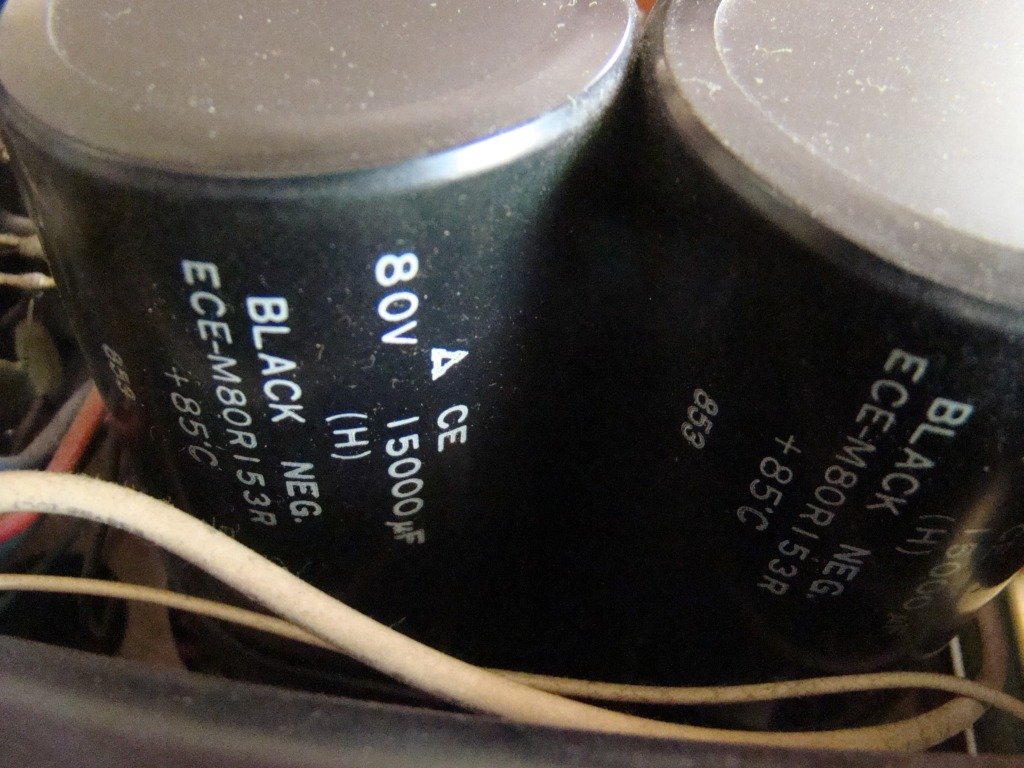

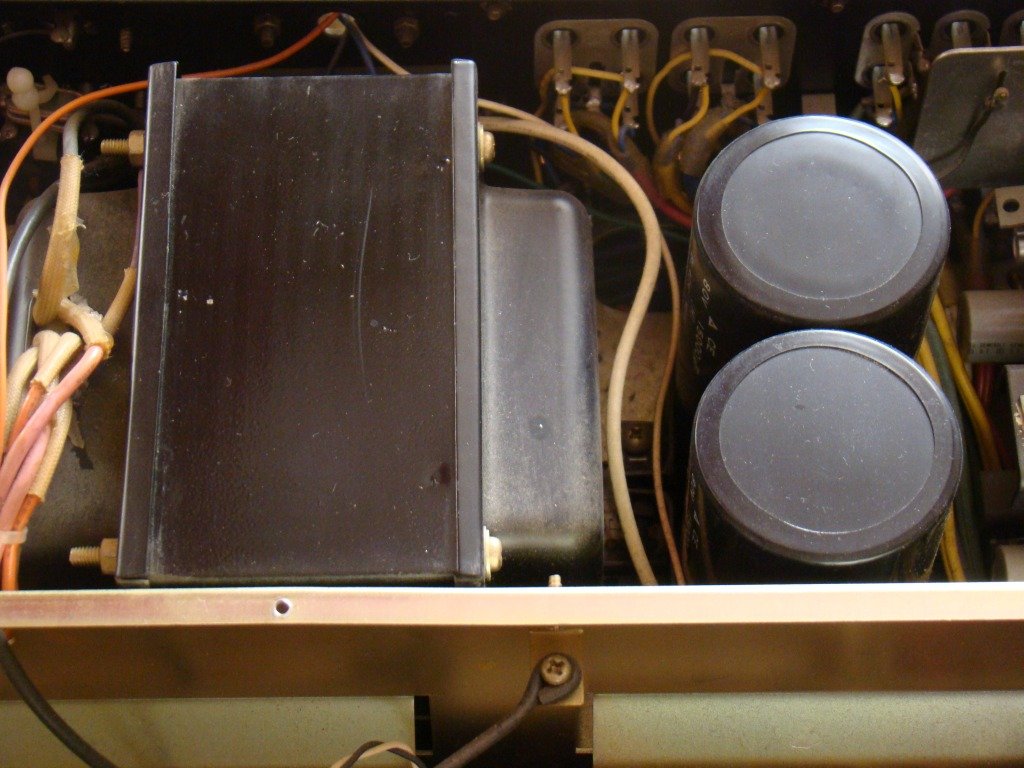

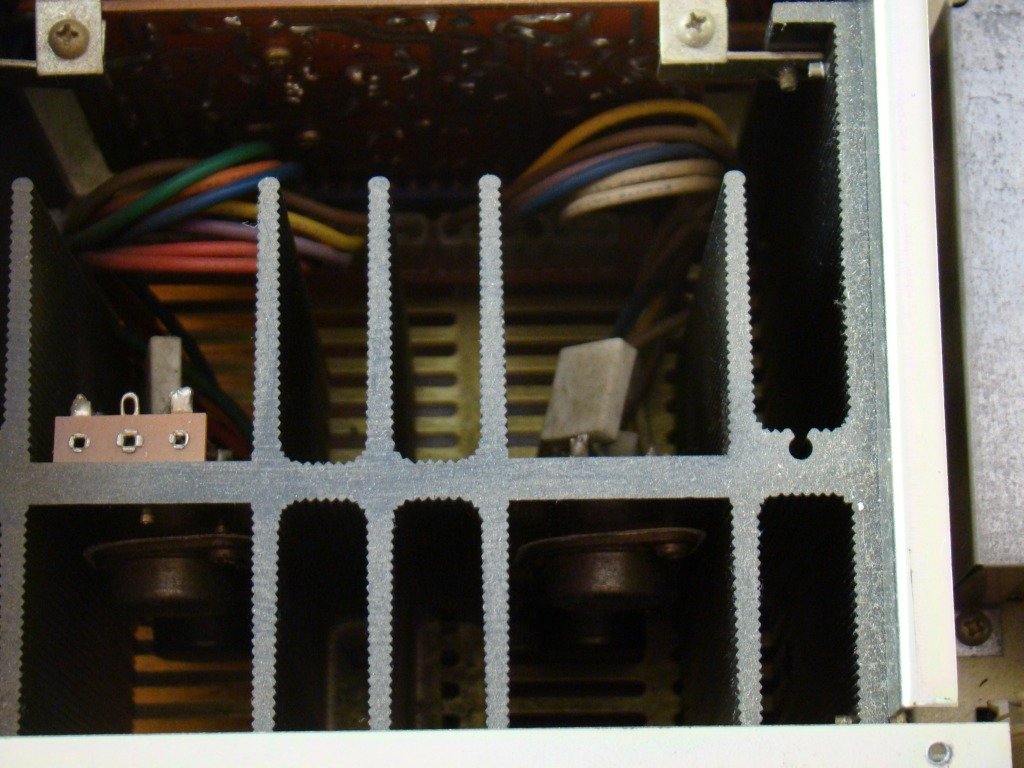

A cool-running power transformer and massive heat sinks form the heart of a dual positive-negative power supply to the high-output transistor stages. This no-compromise design assures safe, cool operation even under continuous full-power output.


Specifications


Power output: 120 watts per channel into 8 ohms

Power bandwidth: 5Hz to 40kHz

Total harmonic distortion: 0.02%

Damping factor: 50

Speaker impedance: 4 to 16 ohms

Input sensitivity: 150mV (line)

Dimensions: 557 x 166 x 395mm

Weight: 20.6kg
Ask about this product
Ocena
5.00
Log-in to add review

Users' reviews

Name: yellow1
2012-10-14

na życzenie

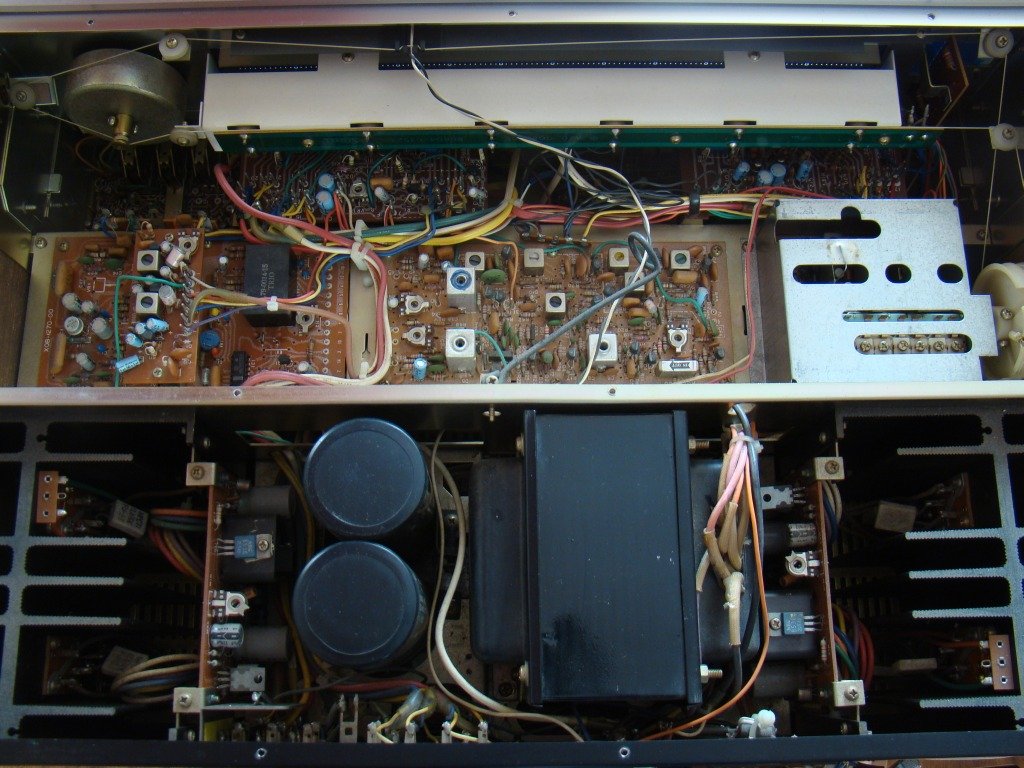

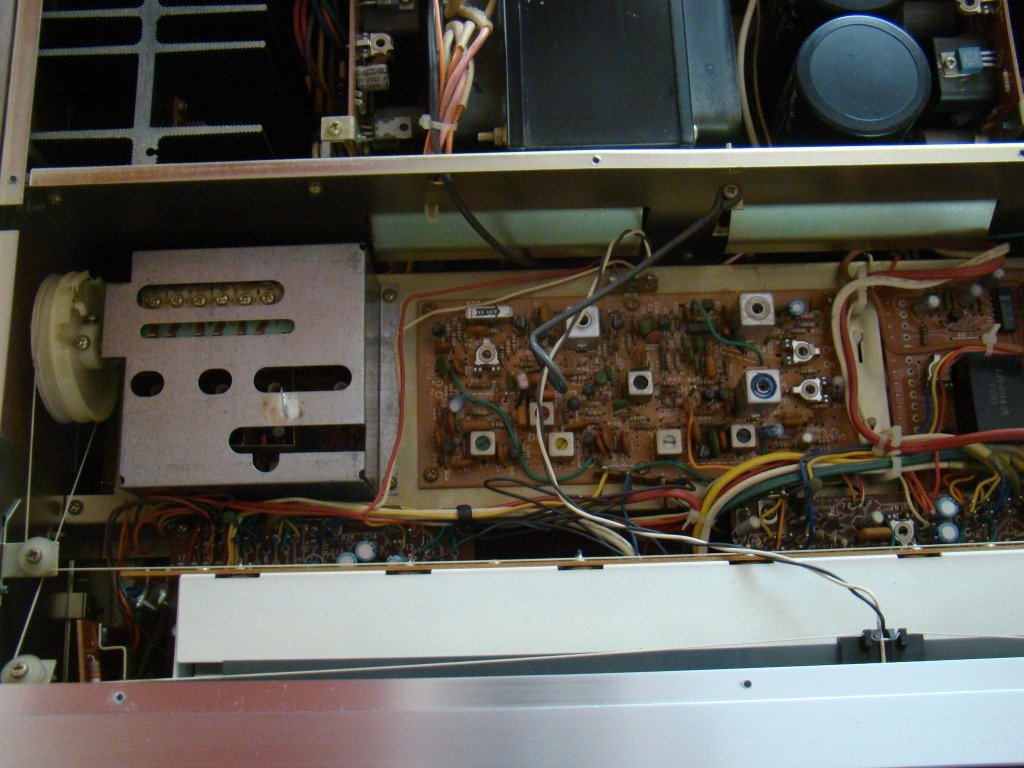

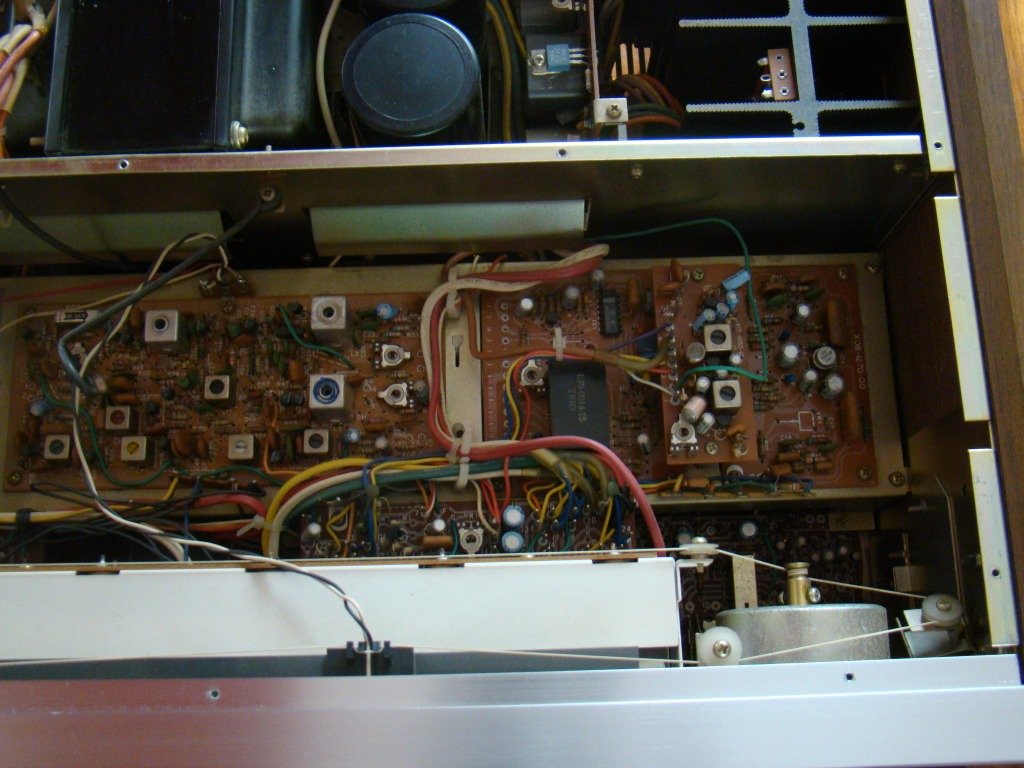

Zaktualizowałem galerię. Jak dla mnie bardzo solidna budowa.
Name: piootr
2012-10-14
5.00

monsterek

czy mogłbyś zrobić zdjęcia środka,
tego modeli niestety jeszcze nie posiadam a ciekaw jestem jak jest wewnatrz zbudowany.
